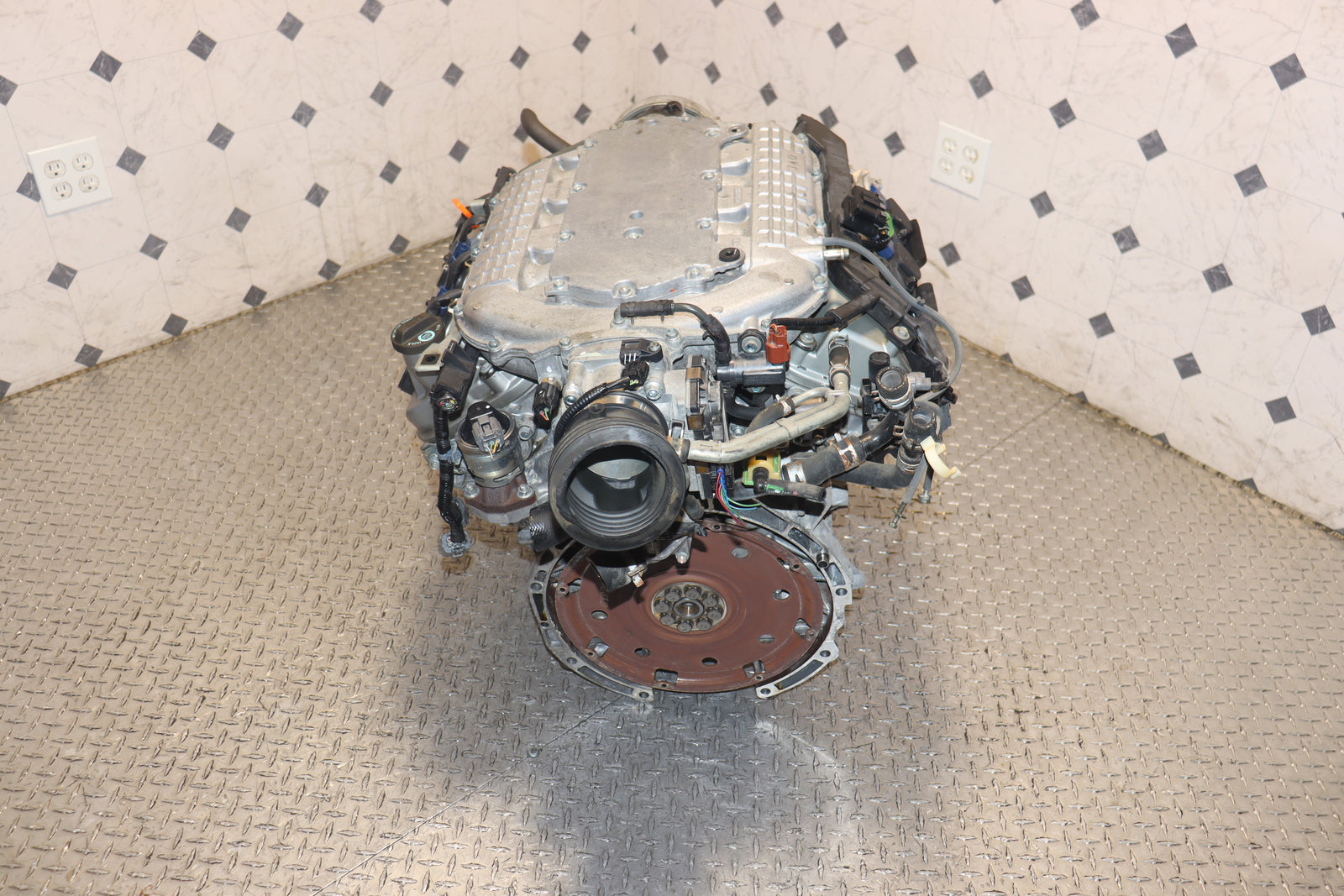

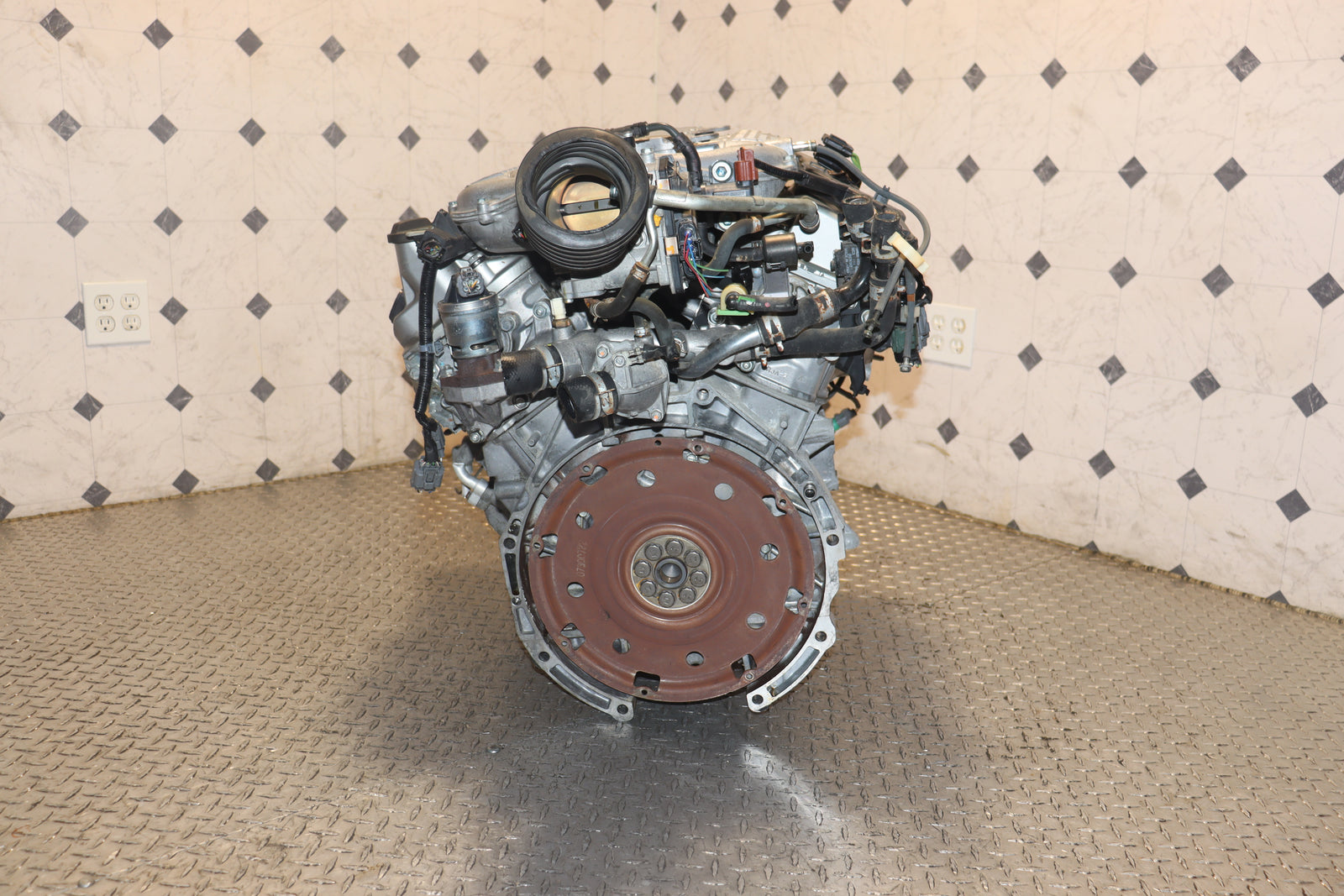

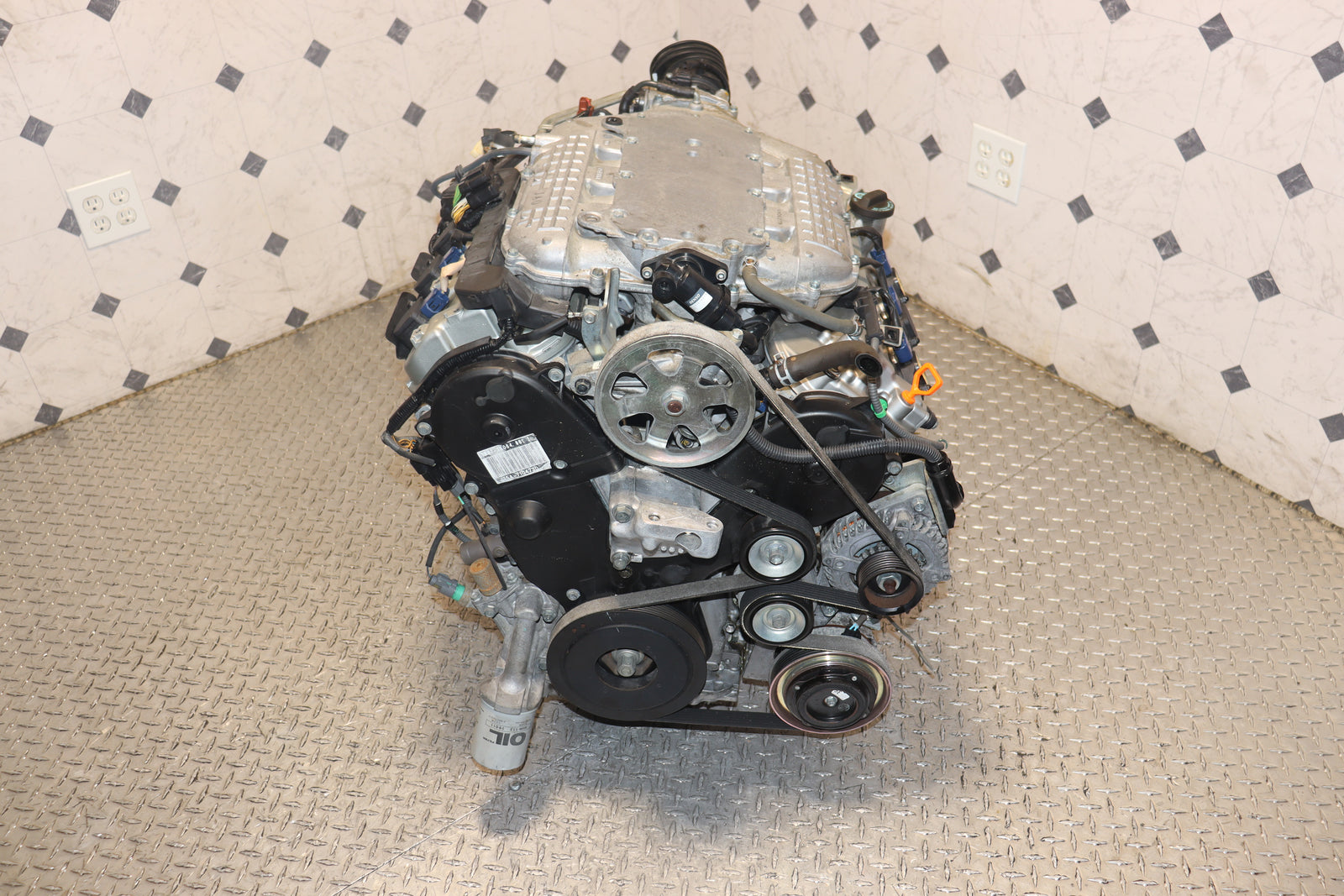

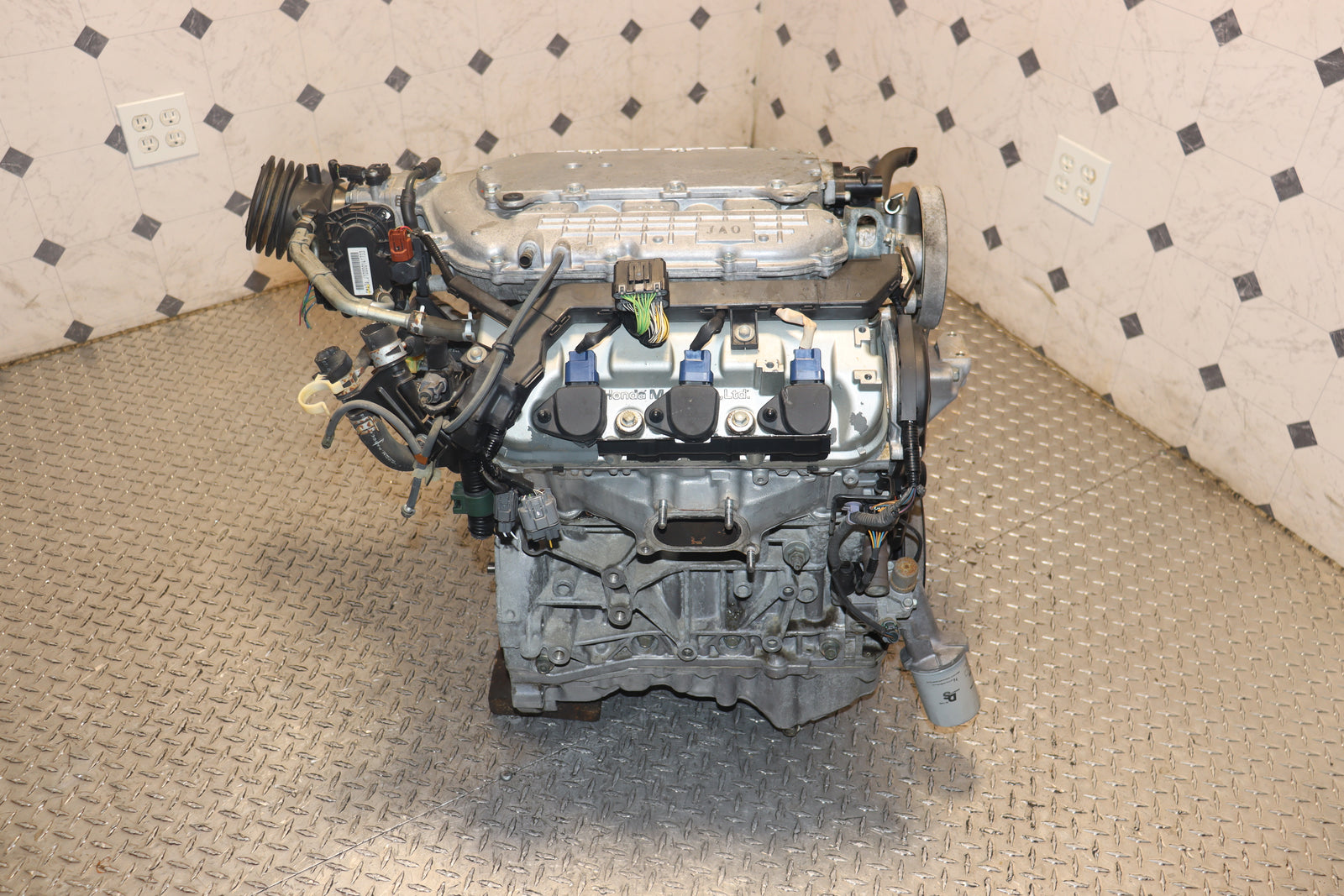

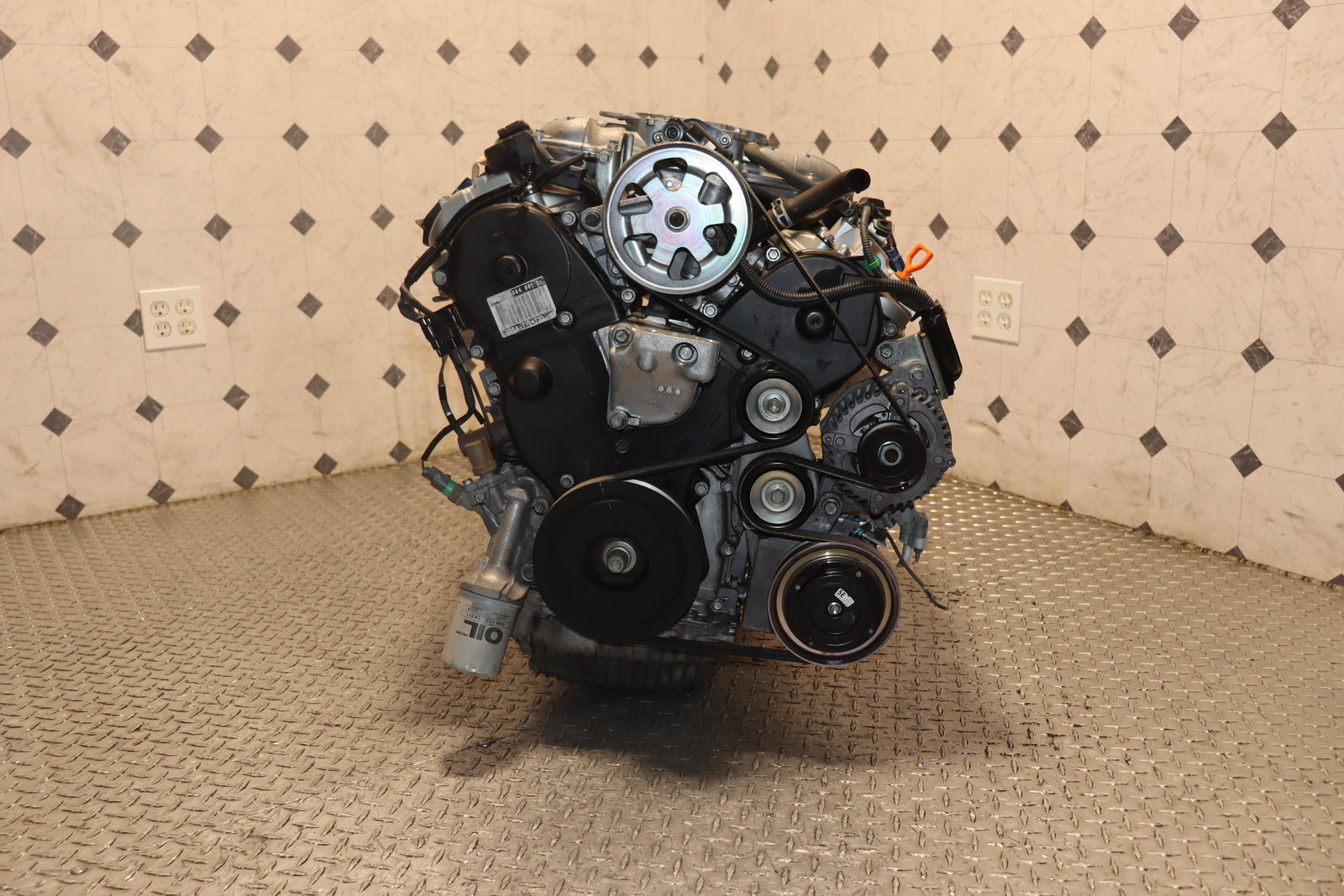

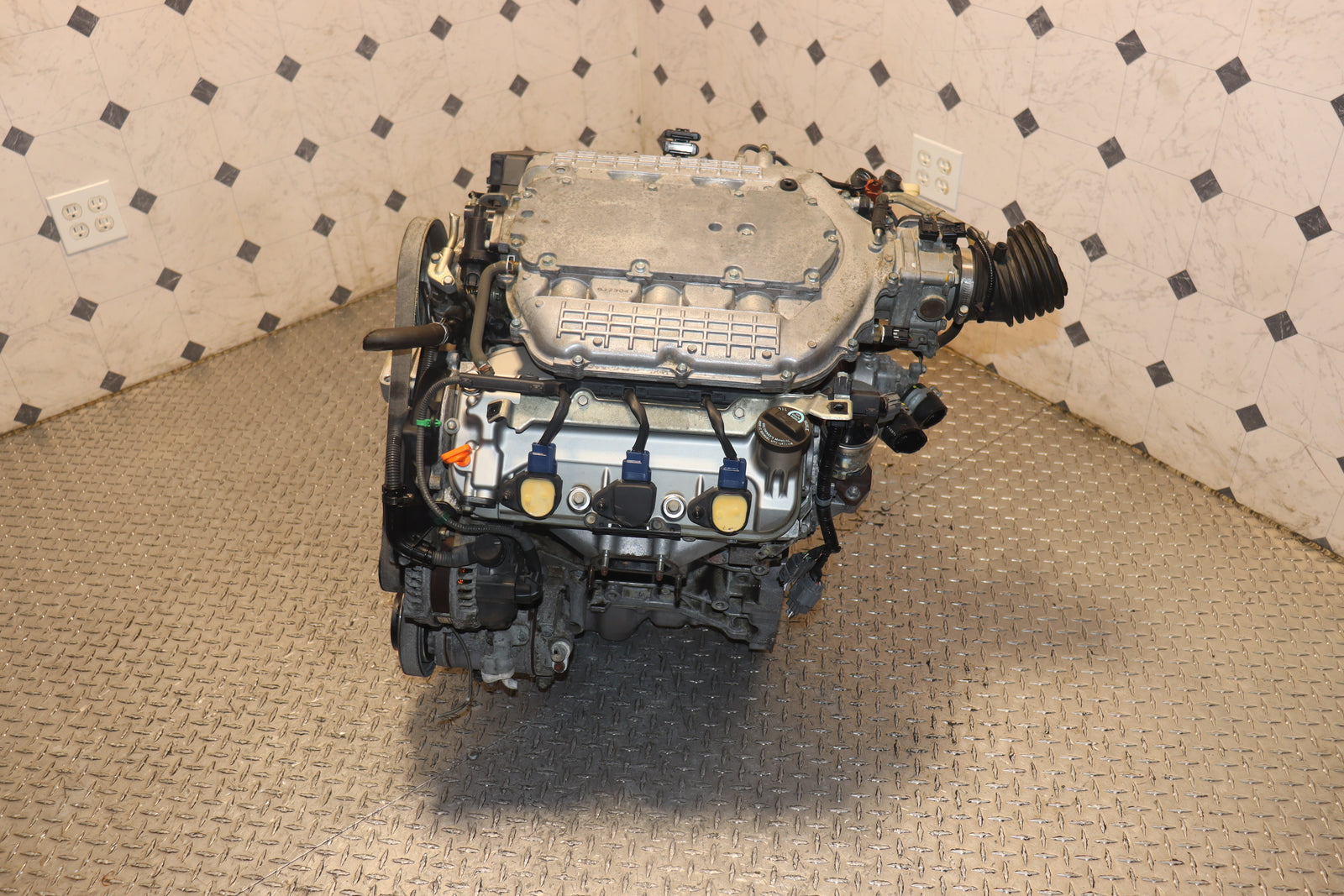

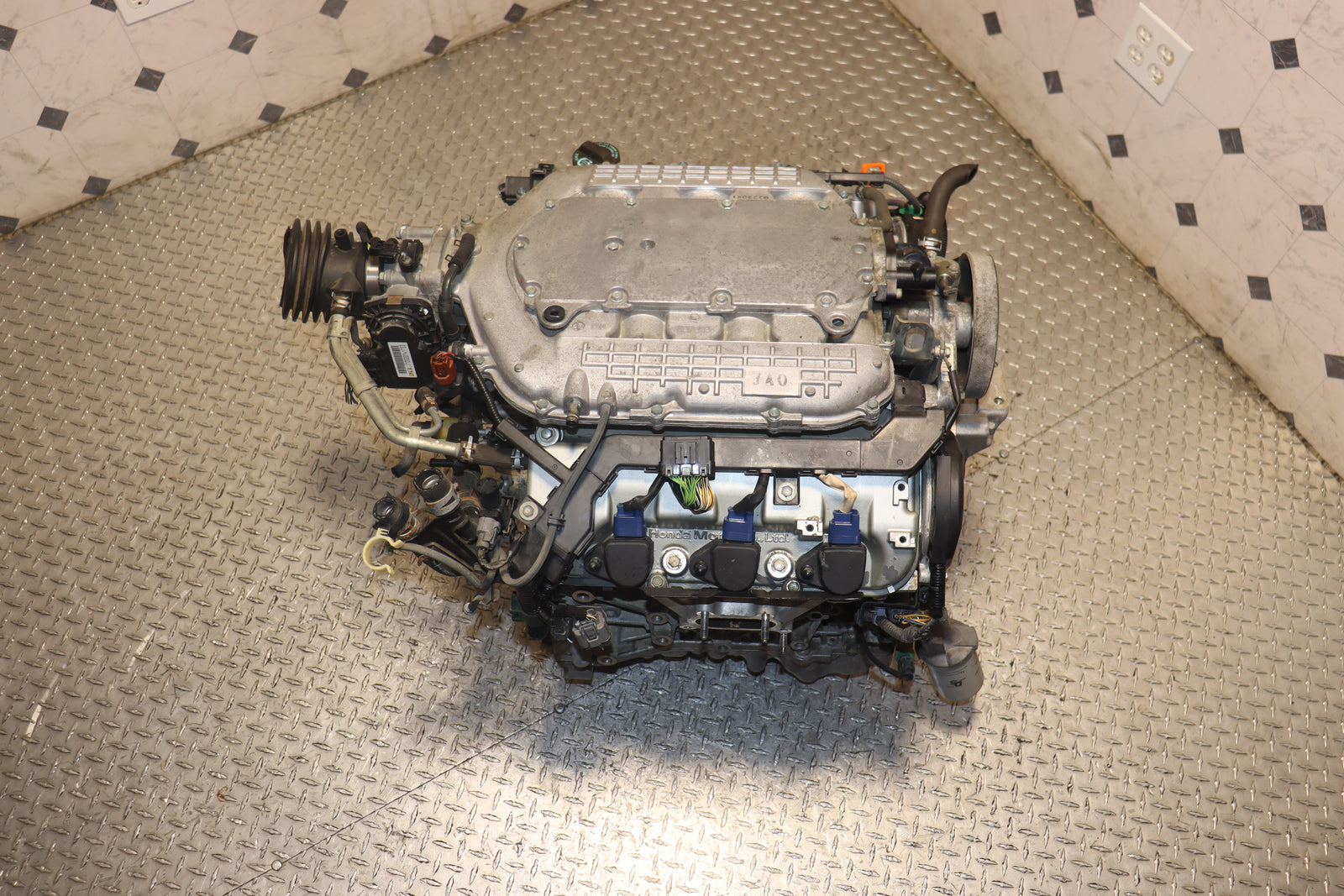

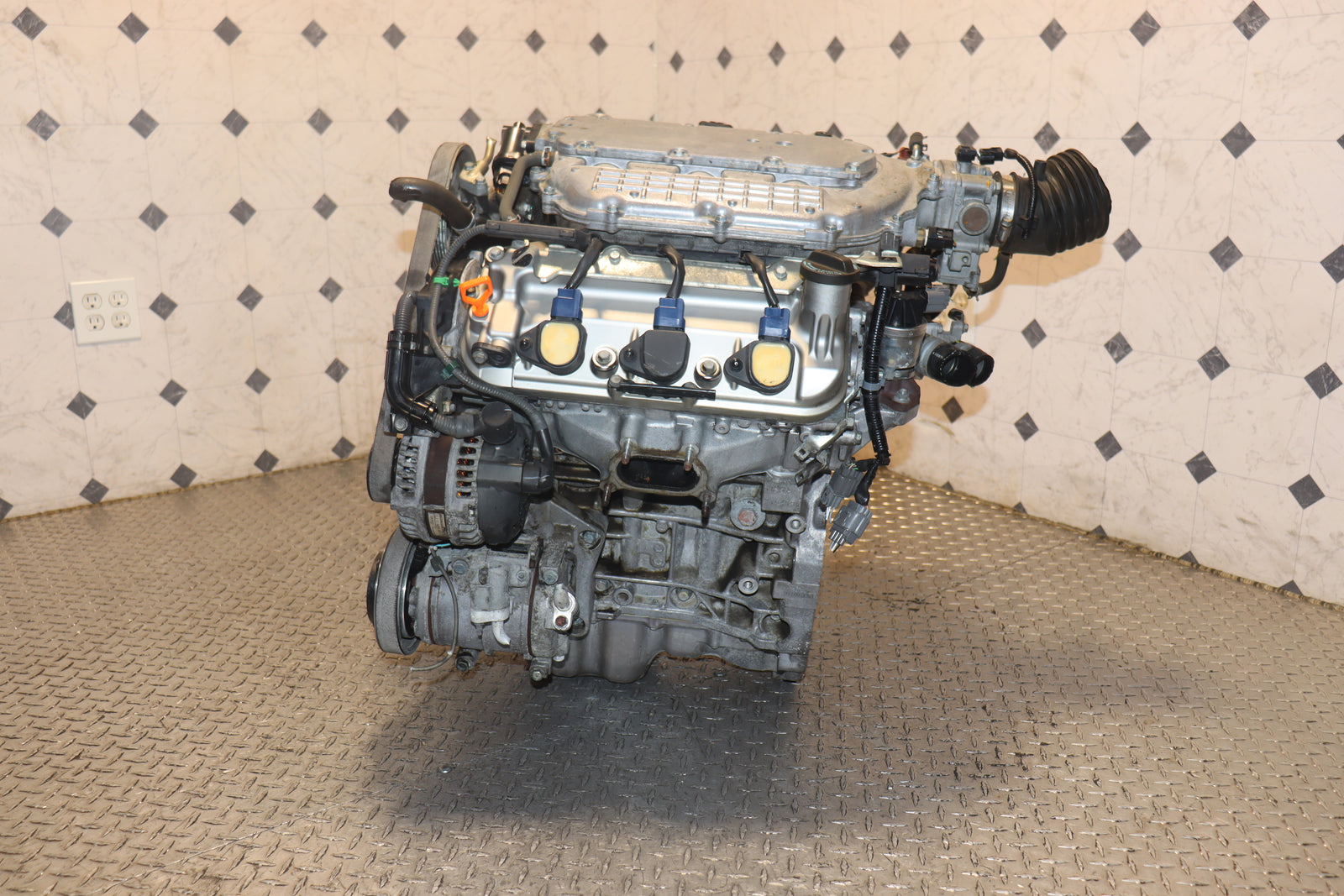

2007-2008 Acura TL Type-S J35A JDM Engine | 3.5L V6 SOHC VTEC Motor (J35A8)
In Stock
1 Left
Sale price
$1,750
Regular price
$1,849
Save $99 (5%)
Make:
Acura
Product Fitment:
2007 - 2008 Acura TL Type S
Mileage:
47k
Engine Design:
SOHC
,
V6
Engine Type:
Gas
Warranty:
90 Days
Shop Now, Pay Later with Shop Pay
Shop now and pay later with Shop Pay. Split your purchase into easy monthly payments—no fees, no surprises.
Free Local Delivery
Enjoy fast and free delivery within our local area, ensuring your parts arrive quickly, safely, and hassle-free.
90 Days Warranty
90-day warranty for non-performance engines, 30 days for performance. Covers internal parts, excludes labor. Read more
Pickup at JDM SEATTLE
Usually ready in 1 hour View store information
Product Information
2007-2008 Acura TL Type-S J35A JDM Engine | 3.5L V6 SOHC VTEC Motor (J35A8)
| Feature | Details |
| Engine Code | J35A8 (JDM J35A Equivalent) |
| Displacement | 3.5 Liters (3,471 cc) |
| Configuration | 60° V6 Aluminum Block & Heads |
| Valvetrain | SOHC 24-Valve VTEC |
| Horsepower | 286 hp @ 6,200 rpm |
| Torque | 256 lb-ft @ 5,000 rpm |
| Compression Ratio | 11.0:1 (High Compression) |
| Internal Features | Factory Forged Crankshaft & High-Flow Intake Ports |
Vehicle Fitments
This JDM J35A8-spec long block is designed for the following North American (USDM) models:
-
2007-2008 Acura TL Type-S (6-Speed Manual and 5-Speed Automatic)
Installation & Technical Notes
The TL Type-S J35A is a high-performance "interference" engine. To ensure a successful installation and maintain your warranty, please follow these technical guidelines:
-
Long Block Conversion: This sale includes the engine block, cylinder heads, and internal rotating assembly. You must transfer your original USDM intake manifold (with the Type-S nameplate), exhaust manifolds, wiring harness, and all sensors (Crank, Cam, and Knock) to ensure 100% plug-and-play compatibility with your vehicle’s ECU.
-
Oil Filter Housing: You may need to transfer your original USDM oil filter housing to ensure the oil pressure sensors and oil cooler lines (if equipped) align perfectly with your chassis.
-
Transmission Pairing: Whether your Type-S is a 6-speed manual or automatic, ensure the dowel pins are correctly seated in the block before mating the transmission to prevent input shaft misalignment.
-
Essential Maintenance: We strongly recommend replacing the following parts during the swap:
-
Timing Belt Kit: Replace the belt, water pump, and hydraulic tensioner (Interference Engine).
-
Spark Plugs: NGK Laser Iridium (IZFR6K11).
-
Rear Main Seal: Significantly easier to replace while the engine is out of the car.
-
Engine Oil: 5W-20 or 5W-30 Full Synthetic Oil.
-
-
Fuel Requirement: Due to the 11.0:1 compression ratio, this engine requires 91 octane premium fuel or higher to prevent ignition timing retard and maintain peak horsepower.
